Acid-Fast Bacillus (AFB) Staining Methods

Acid-Fast Bacillus (AFB) Staining Methods

AFB staining is used to identify acid-fast bacilli, particularly Mycobacterium tuberculosis (the causative agent of tuberculosis) and other mycobacteria. These bacteria have a waxy, lipid-rich cell wall that makes them resistant to conventional staining methods. The acid-fast properties of these bacteria are due to the presence of mycolic acids in their cell walls.

Ziehl-Neelsen Staining Method (Hot Method)

Material Requirements:

1. Glass Slide - For preparing bacterial smears.

2. Bunsen Burner or Heat Source - To heat the slide gently.

3. Carbol Fuchsin (Primary Stain) - A red dye that penetrates the cell wall of mycobacteria.

4. Hydrochloric Acid (HCl, 3%) in Alcohol (Decolorizer) - Removes the carbol fuchsin from non-acid-fast bacteria.

5. Methylene Blue (Counterstain) - Stains non-acid-fast bacteria blue after decolorization.

6. Distilled Water - To rinse the slides after staining.

7. Beaker or Staining Dish - For holding solutions.

8. Kimwipes or Paper Towels - For blotting the slide gently.

9. Immersion Oil - For microscopic examination at oil immersion magnification (100x).

10. Microscope - With oil immersion lens to examine the stained smear.

11. Protective Gloves and Safety Equipment - To ensure safety while handling chemicals.

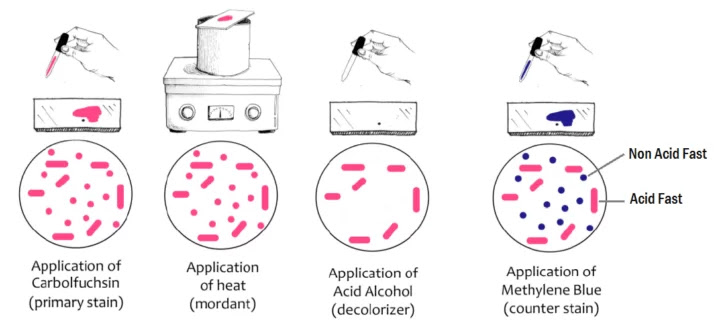

Procedure (Ziehl-Neelsen Method):

1. Prepare the Smear:

   • Prepare a bacterial smear by spreading the sample on the glass slide and air-drying it. Heat-fix the smear by gently passing it through the flame of a Bunsen burner 2-3 times.

2. Apply the Primary Stain (Carbol Fuchsin):

   • Flood the slide with carbol fuchsin for about 5–10 minutes. Heat gently by passing the slide over the flame or using a heating source (do not boil the slide). This will help the dye penetrate the mycobacterial cell wall.

3. Decolorization:

   • After staining, rinse the slide gently with water. Then decolorize with acid-alcohol (a mixture of 3% hydrochloric acid and ethanol) until the excess stain is removed. This step is crucial as it differentiates acid-fast from non-acid-fast bacteria.

4. Apply the Counterstain (Methylene Blue):

   • After decolorization, counterstain the slide with methylene blue for 1–2 minutes. This will stain non-acid-fast bacteria.

5. Rinse, Dry, and Examine:

   • Rinse the slide with water to remove excess counterstain. Air-dry or blot the slide with a paper towel. Finally, examine the slide under a microscope with oil immersion at 100x magnification.

---

Result Interpretation:

• Acid-Fast Bacilli (AFB): Appear red due to the retention of carbol fuchsin.

• Non-Acid-Fast Bacteria: Appear blue due to the methylene blue counterstain.

Safety Precautions:

• Always wear gloves and other appropriate personal protective equipment when working with chemicals and bacterial cultures.

• Handle hot equipment with care.

• Ensure proper ventilation, especially when using volatile chemicals like alcohol and acid.
